Troy Holly

Feed System Manifolds

UCI Rocket Project – Liquids

During cold flow tests leading up to our rocket’s fourth vertical test fire, it became clear our system was overcomplicated and could be greatly simplified.

Our propulsion team and I would frequently spend hours during tests diagnosing and fixing feed system leaks.

Additionally, our preexisting feed system would not have come close to fitting within the full rocket’s diameter.

I addressed these issues by designing, machining, and testing three custom manifolds to simplify our feed system architecture, minimizing leak points and reducing the feed system’s profile to fit within the rocket.

Design & Analysis

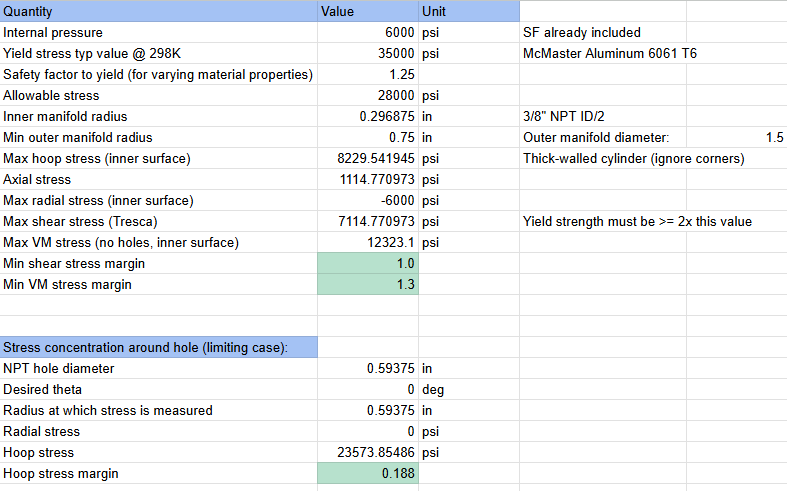

Initial pressure vessel calculations to determine material and sizing

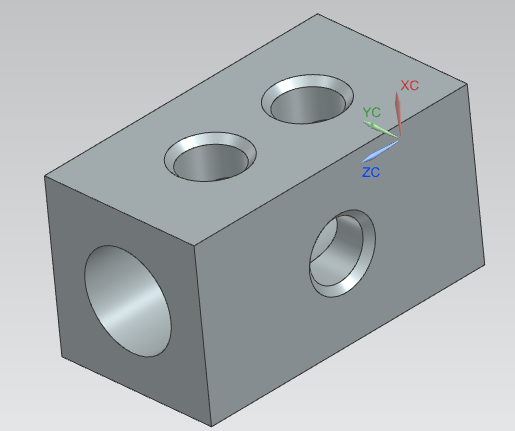

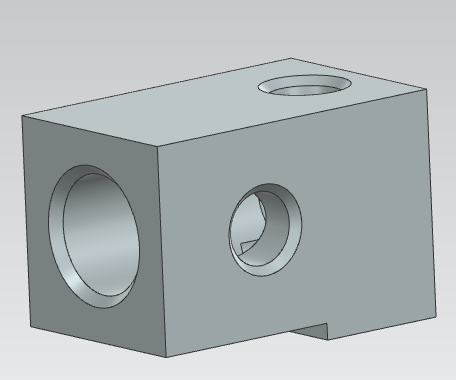

COPV Manifold CAD

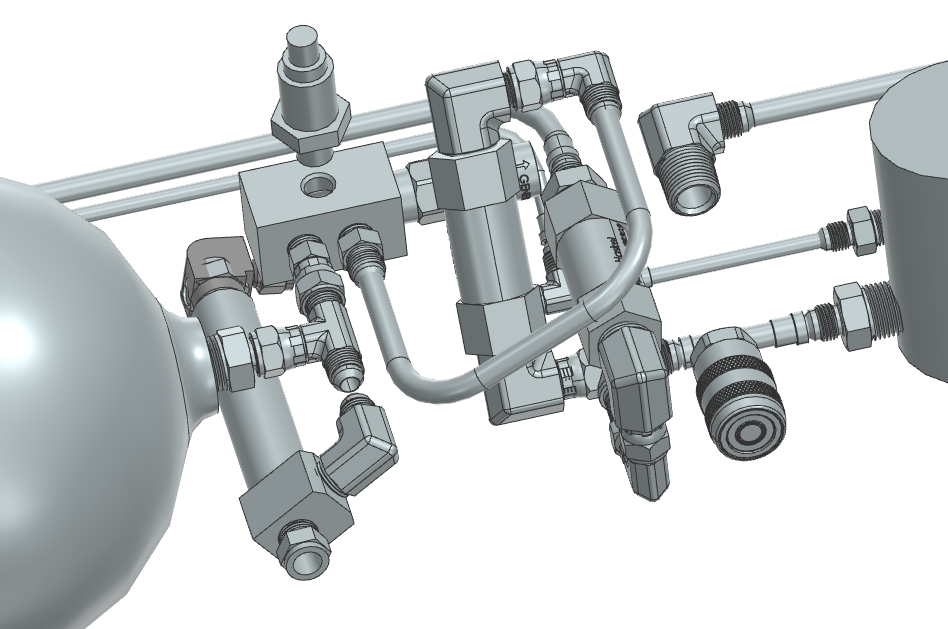

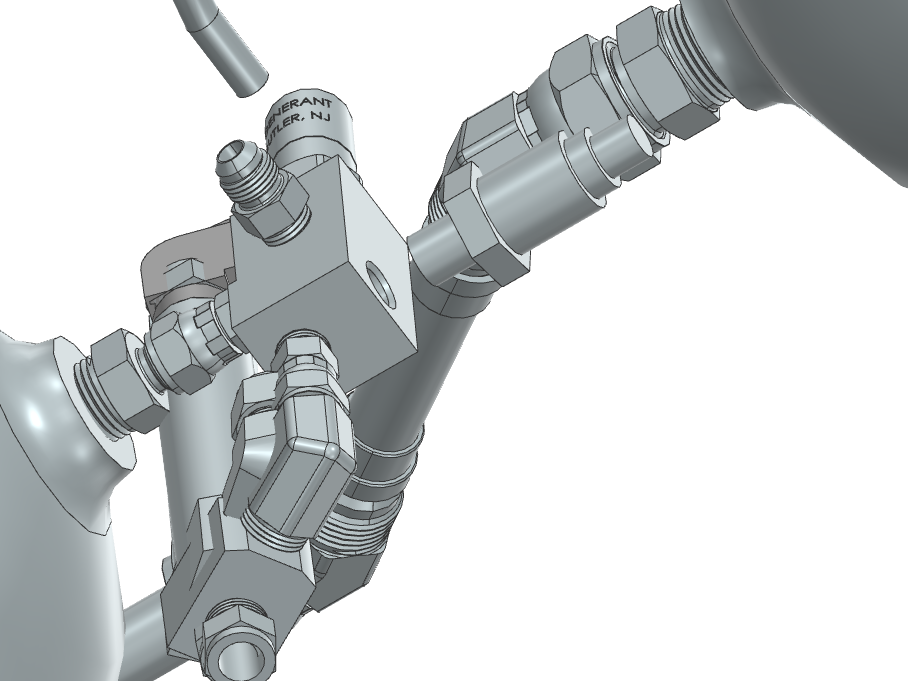

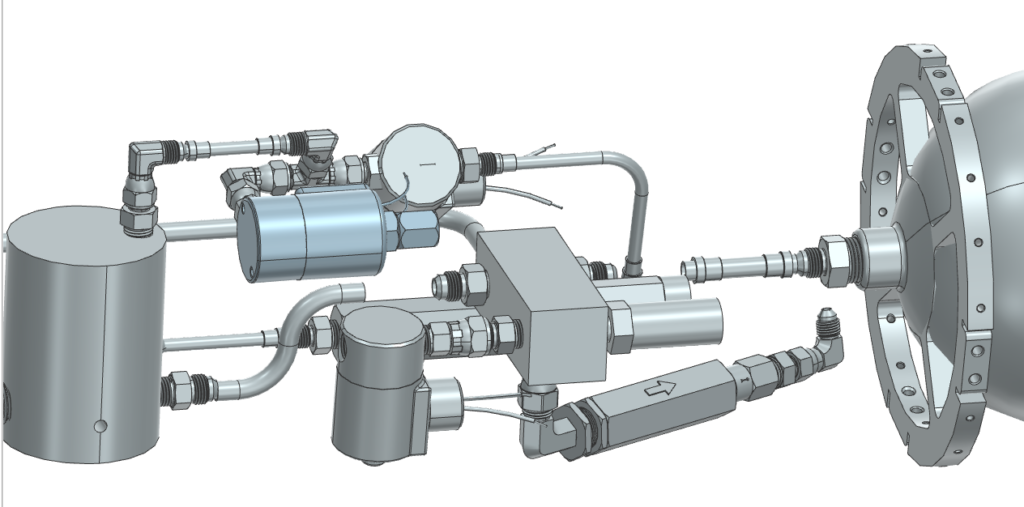

COPV Manifold in feed system CAD

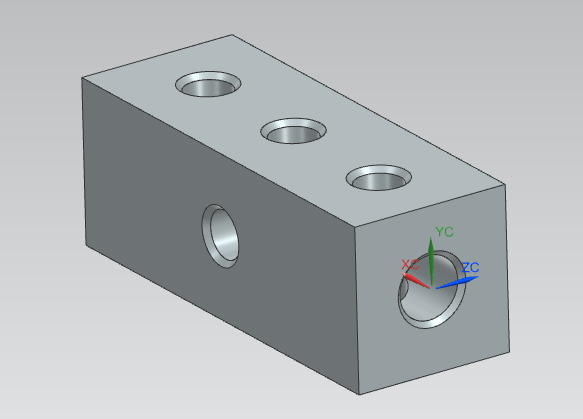

LOX Manifold CAD
LOX Manifold in feed system CAD
LNG Manifold CAD
LNG Manifold in feed system CAD

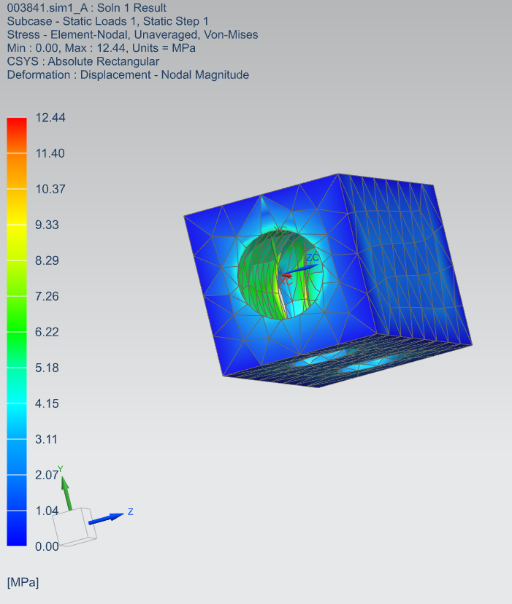

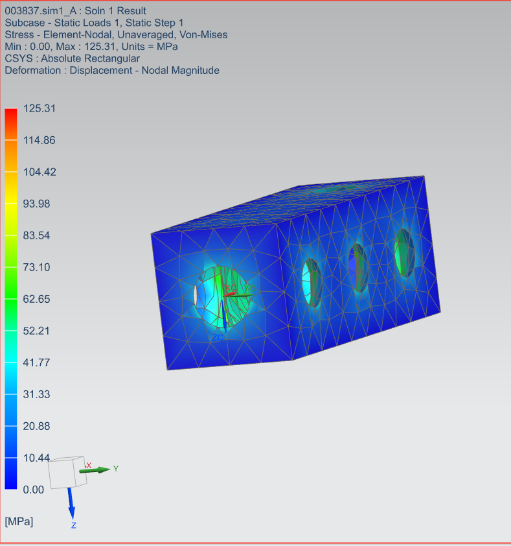

COPV Manifold FEA
LOX Manifold FEA

Manufacturing

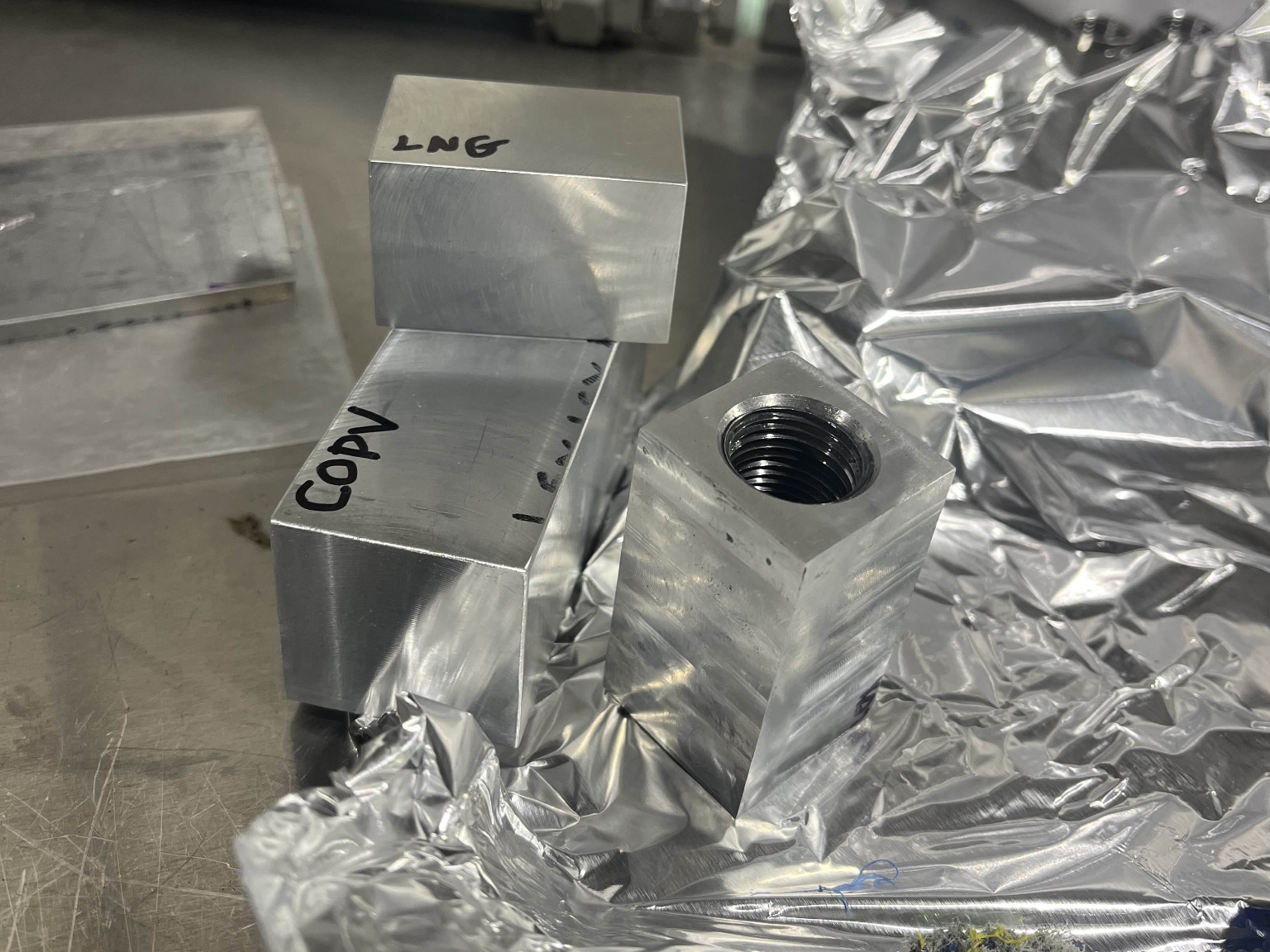

Aluminum stock cut to size, first NPT port drilled and tapped

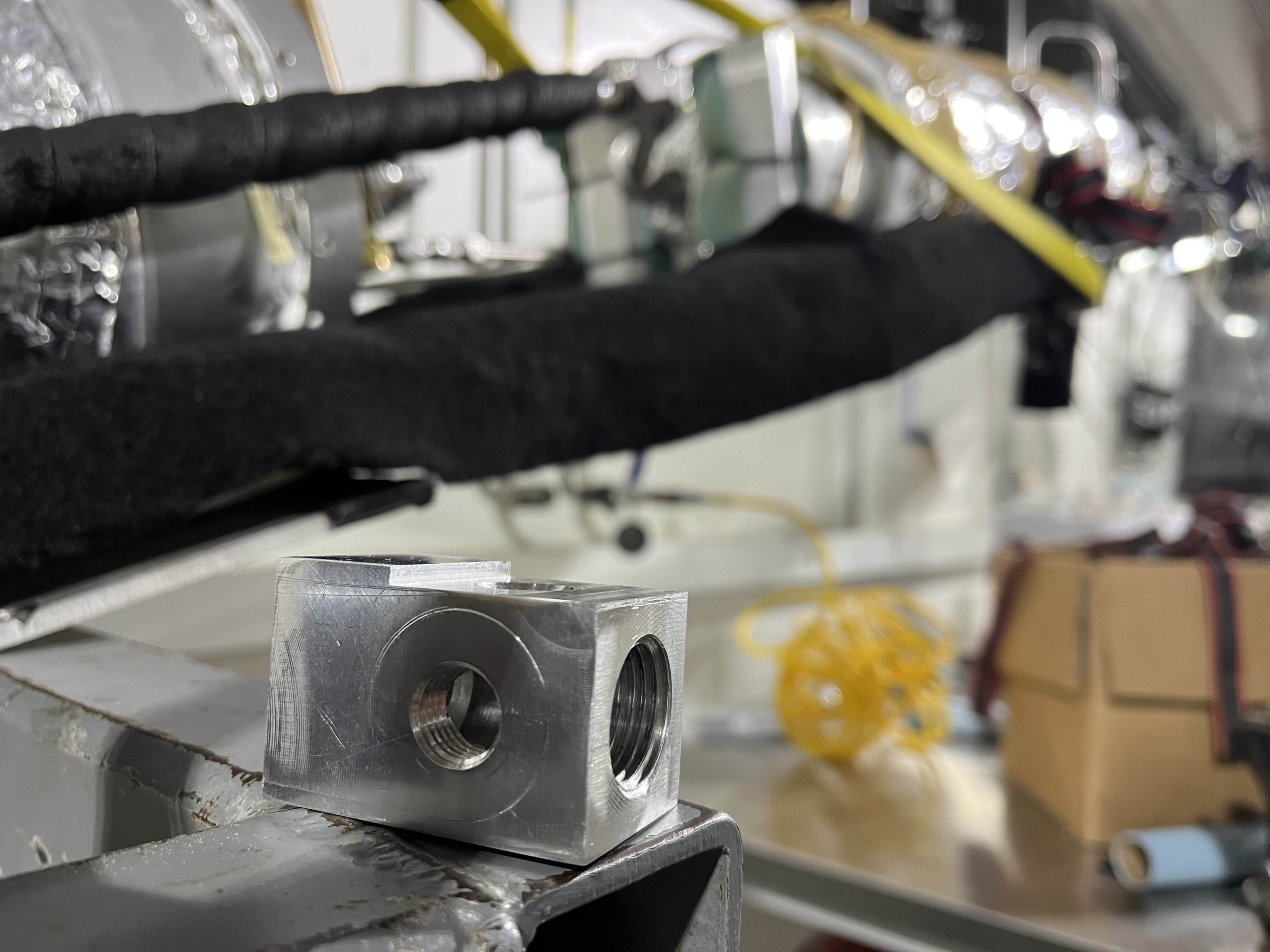

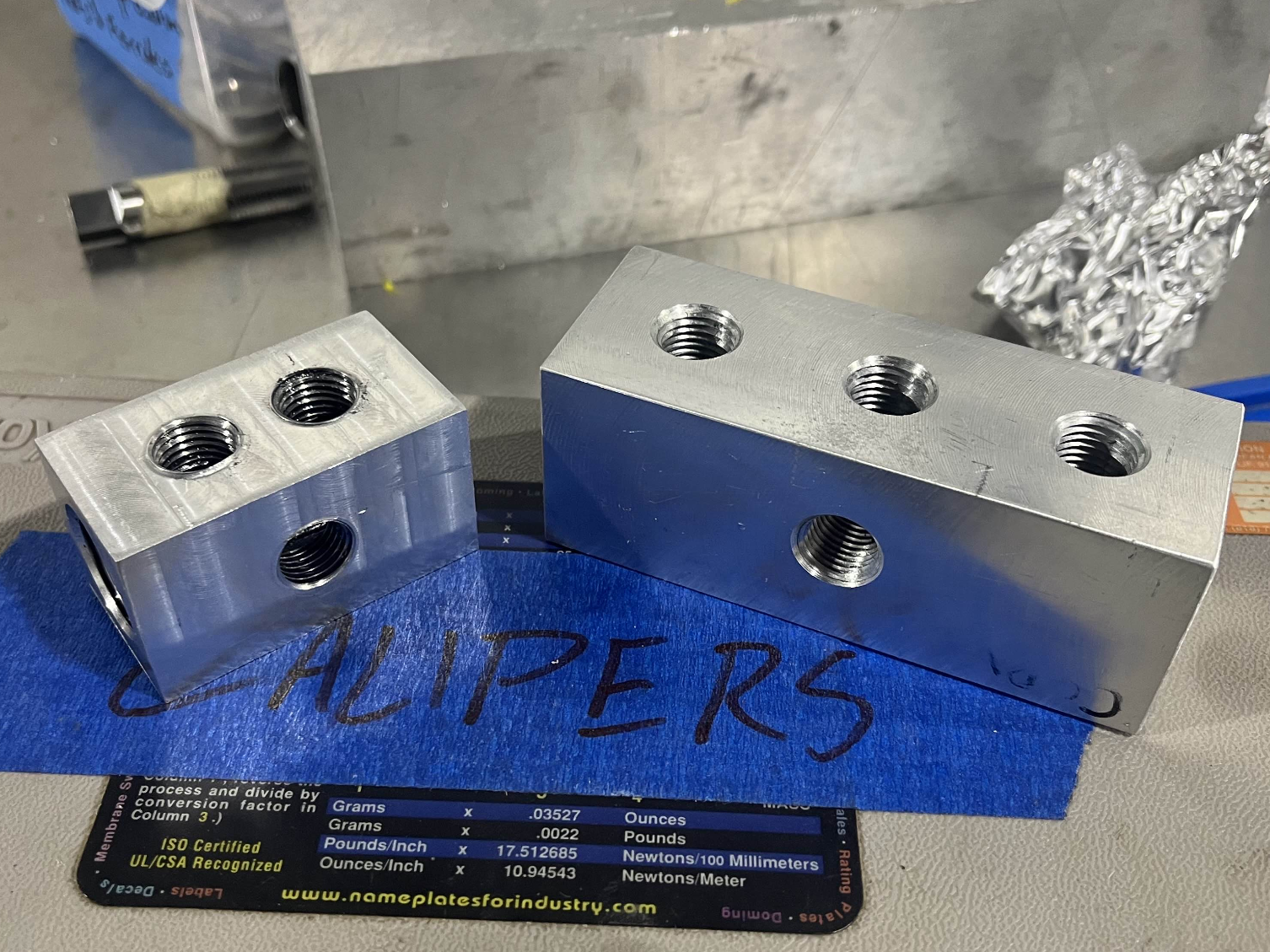

Fully machined LOX and COPV manifolds

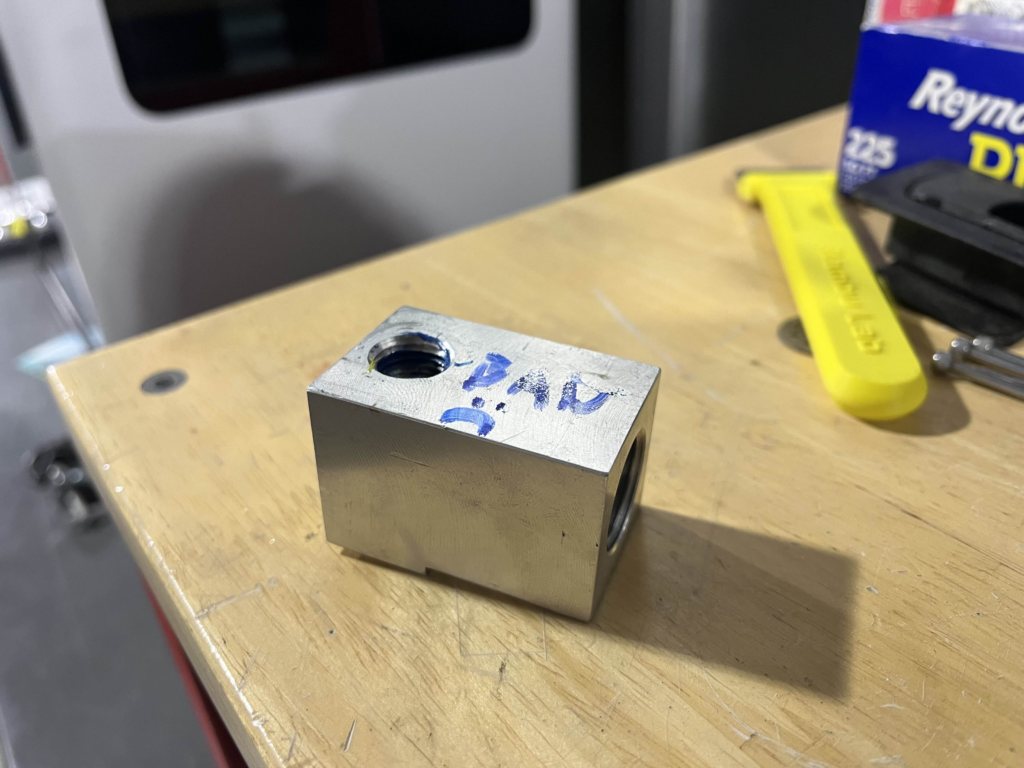

1st LNG manifold, unfortunately I had spec’d some of the NPT taps too deep, rendering it unusable
Remachined (2nd) LNG manifold – this one is on the system now!

Testing and Integration

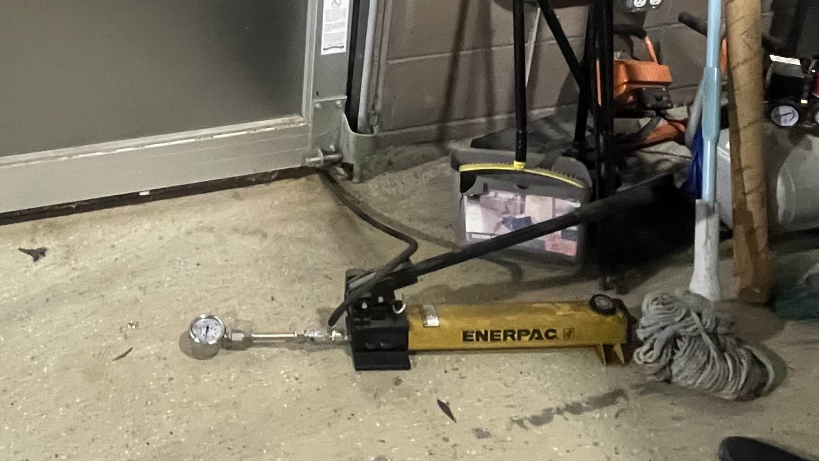

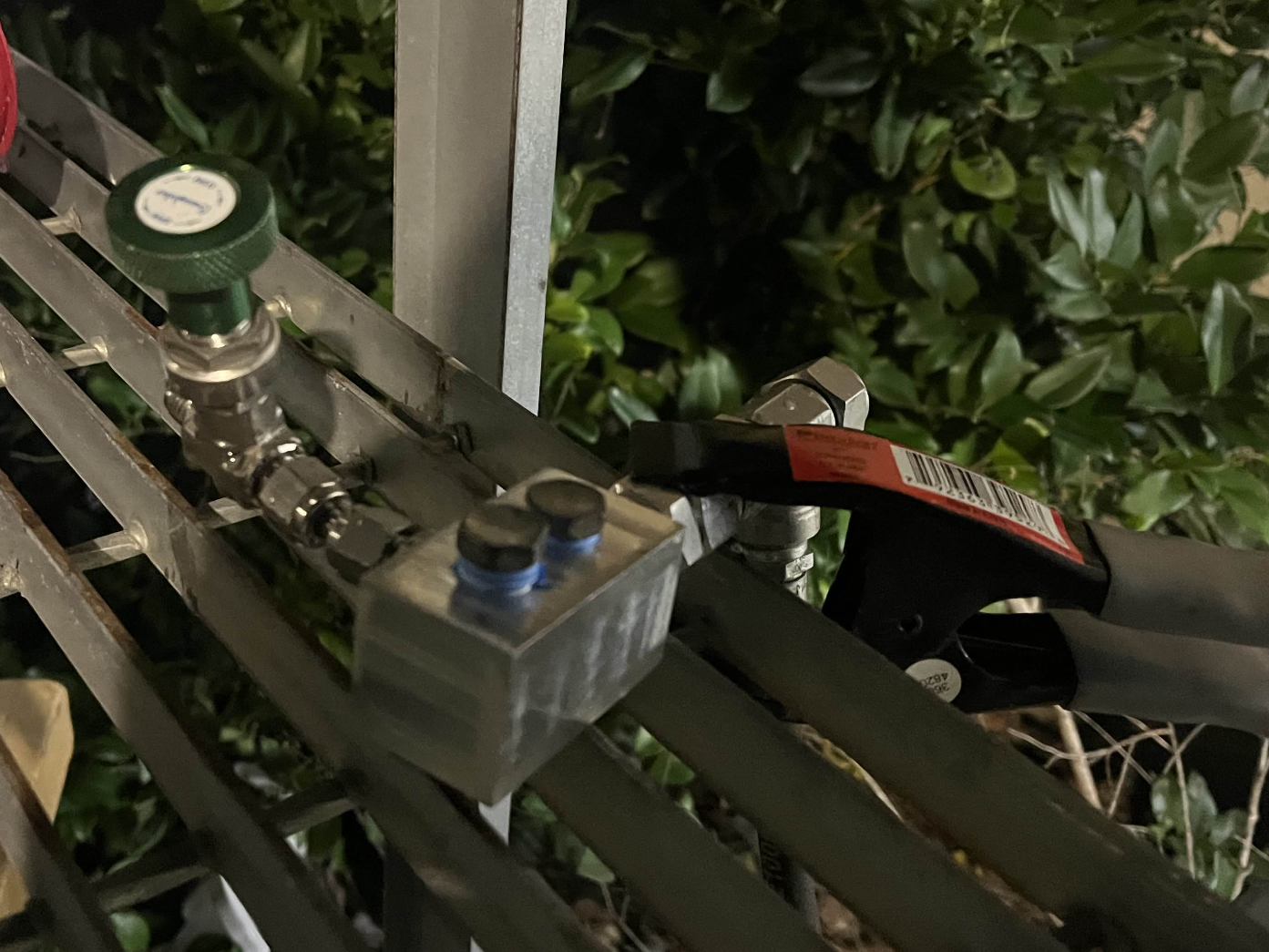

LOX Manifold proof pressure test setup (A)
LOX Manifold proof pressure test setup (B)

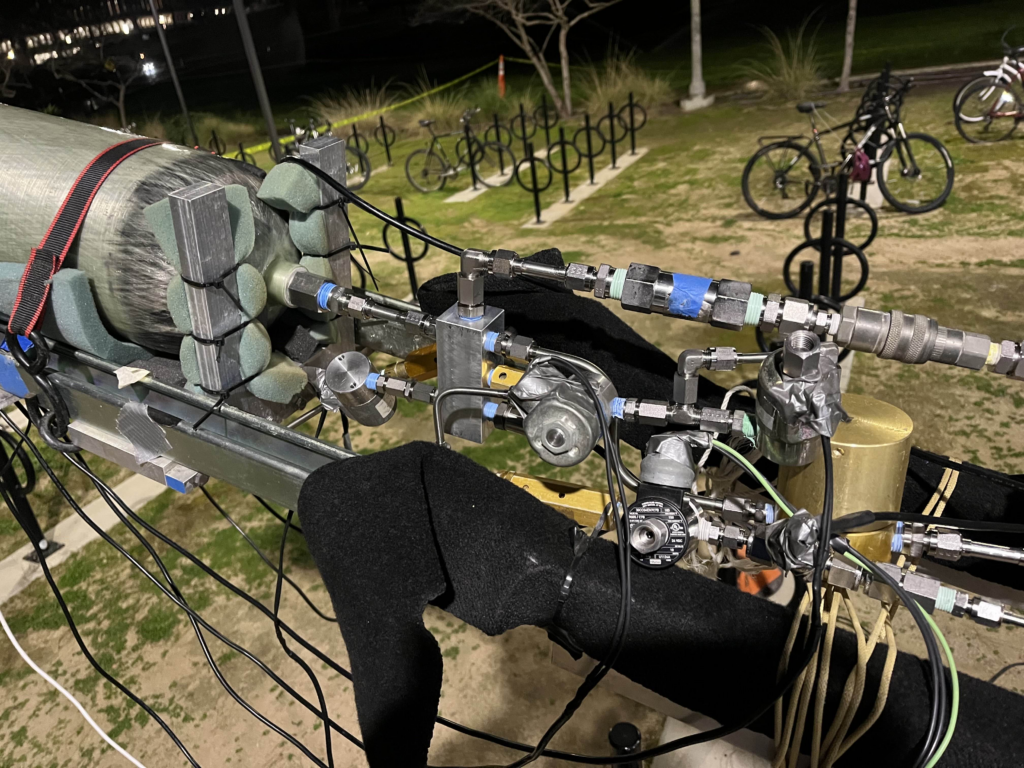

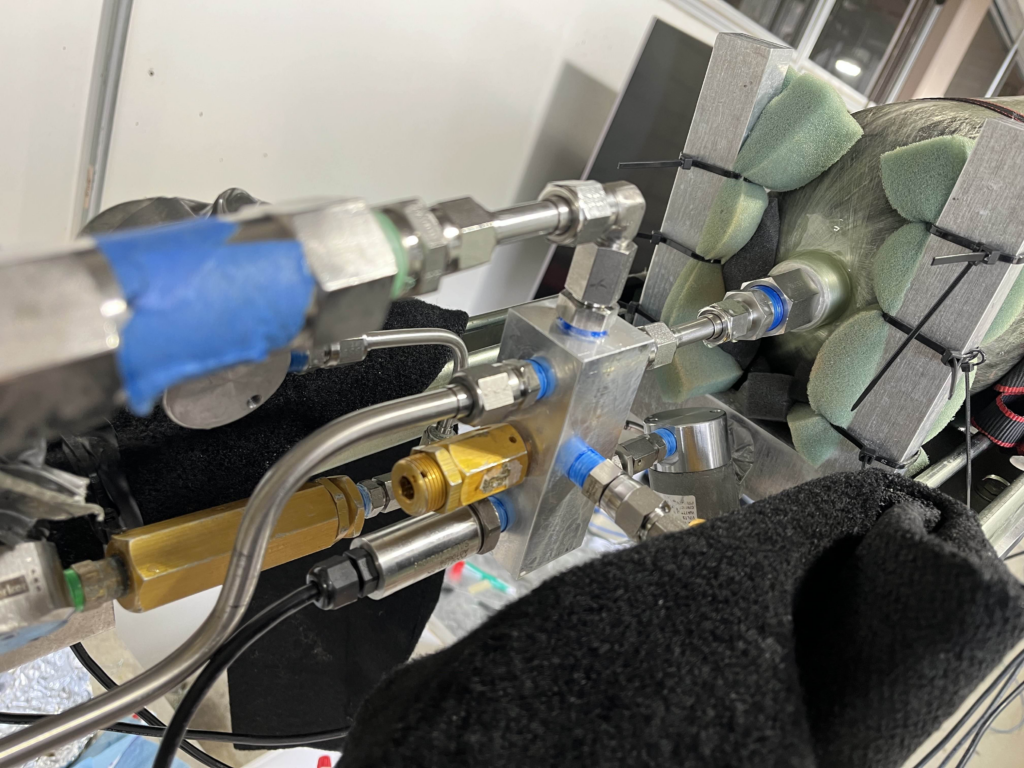

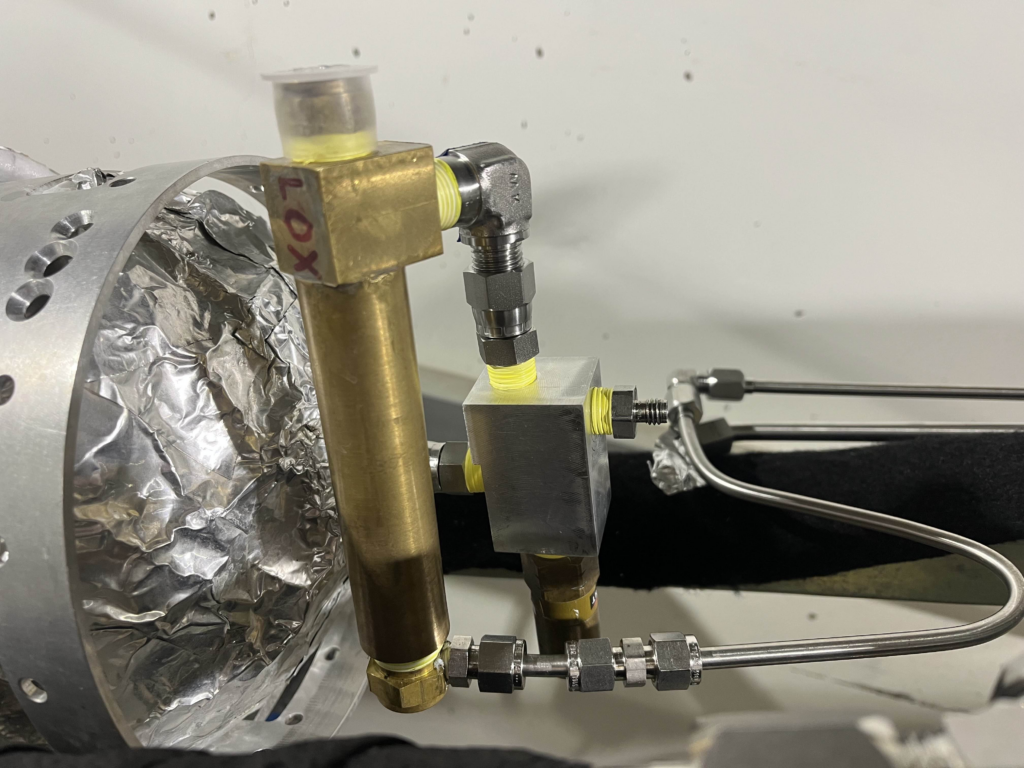

All three manifolds mounted on the system

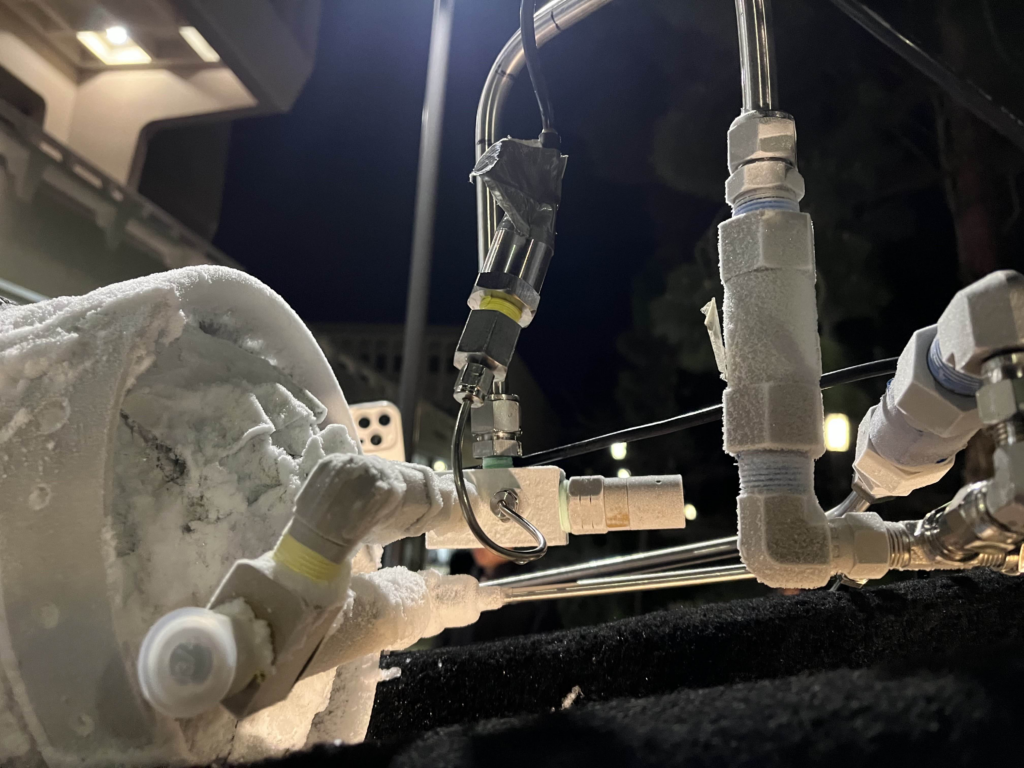

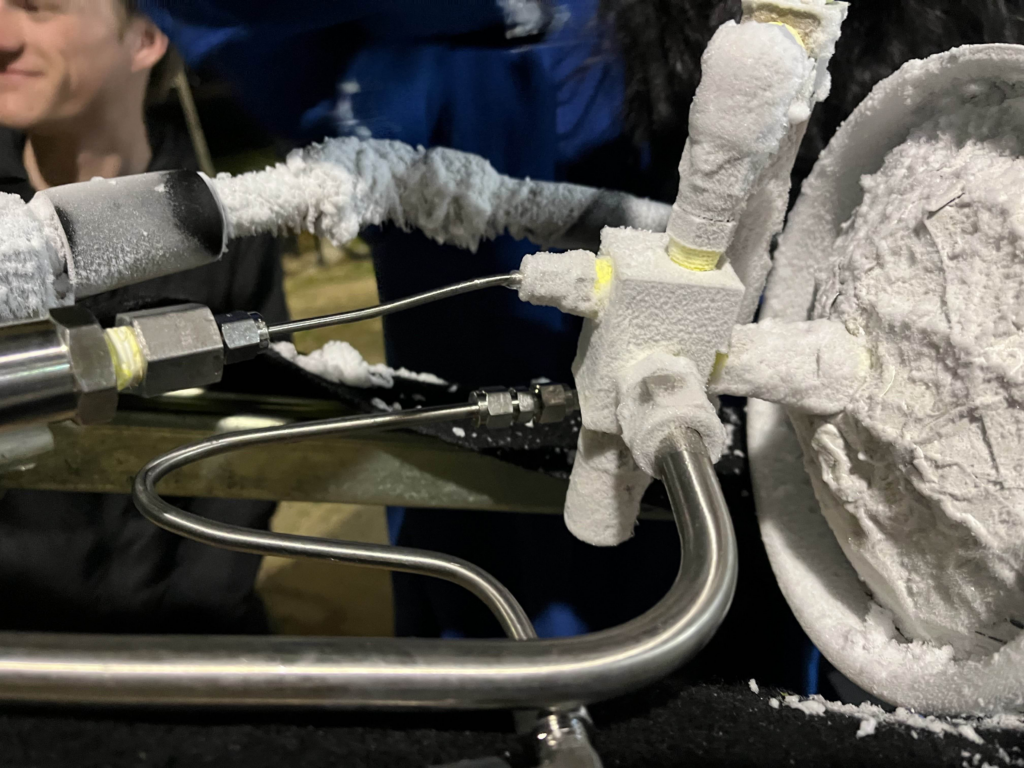

Manifolds looking chilly after a cold flow test

Results

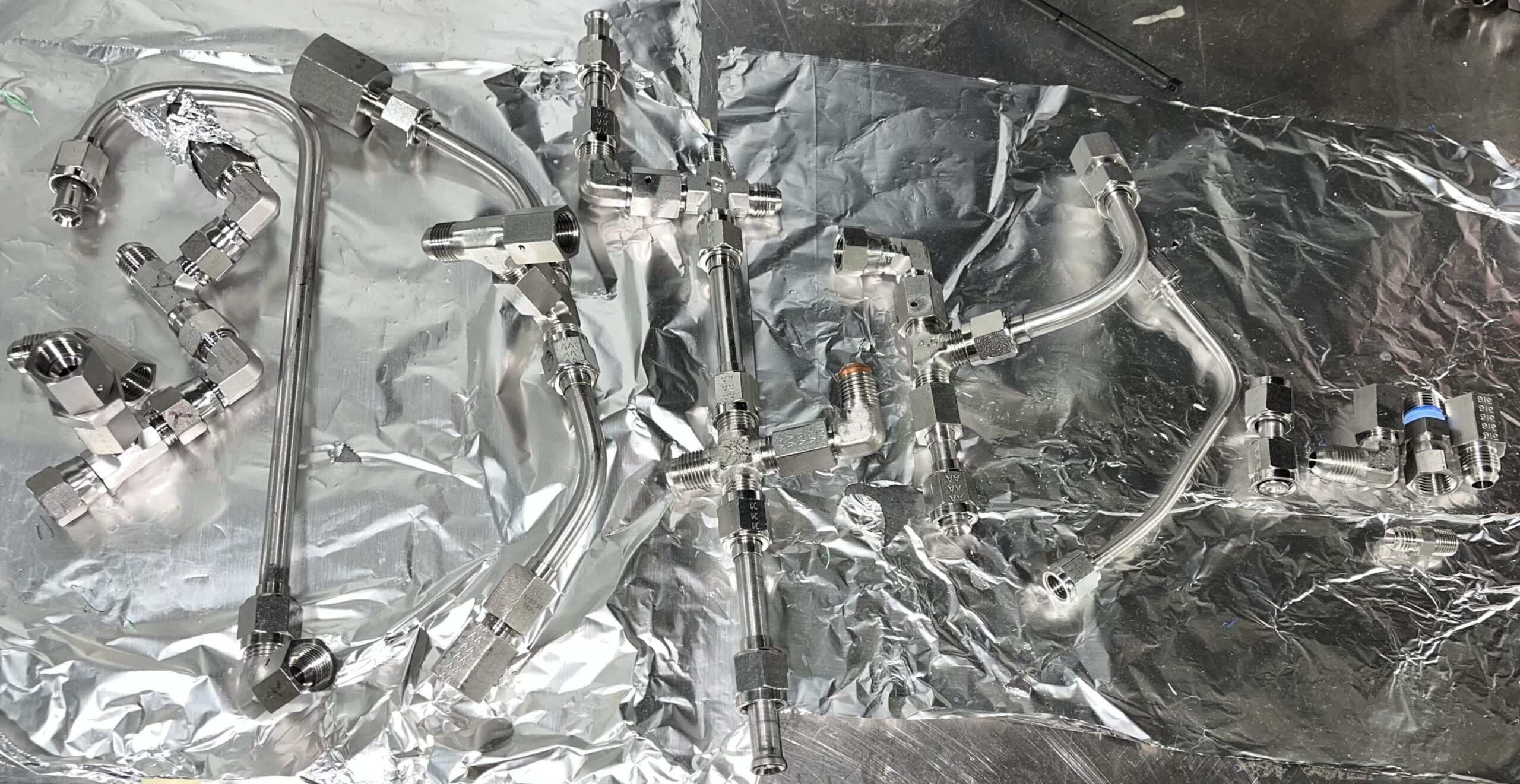

Fittings and tubes replaced by the manifolds

I’m quite happy with how these turned out!

They have greatly streamlined our tests, saving hours spent torquing fittings or taking apart the system to fix leaks.

They will also save us time when we fully disassemble and clean the system leading up to our next static fire, as the manifolds have replaced over 30 individual fittings and tubes on the system.

Timelapse of a cold flow test with the manifolds on
